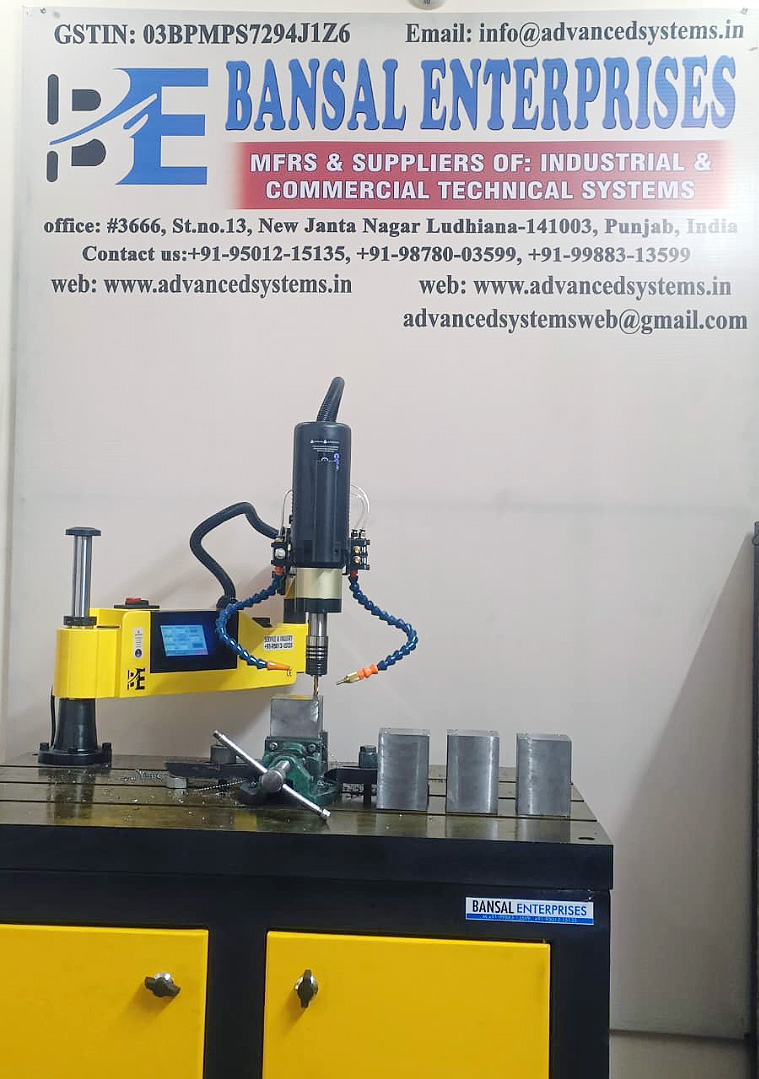

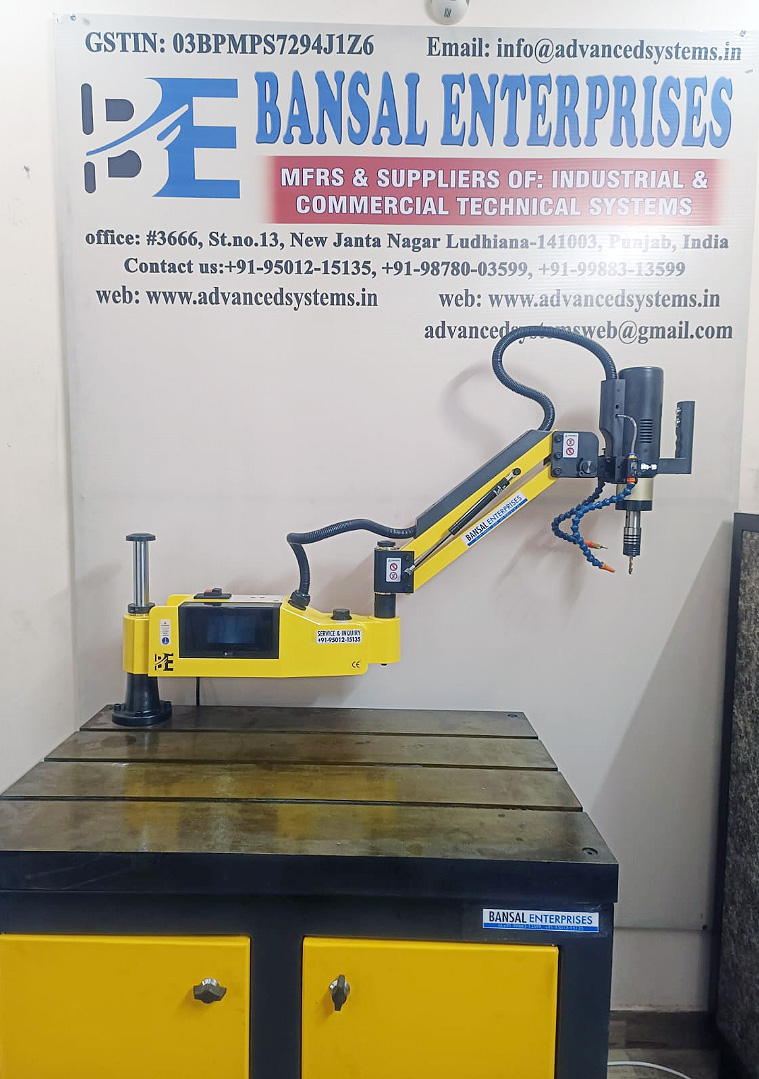

Intelligent servo tapping machines are advanced, high industrial tools featuring servo motor technology for automated or manual thread cutting. They feature sm tap breakage, digital touch screen controls.
I Intelligent Torque Control: Monitors tapping torque to prevent tap breakage.
II Versatility: Capable of vertical or horizontal tapping.
III Automation: Offers manual or automatic modes with programmable depth control.
IV Precision: High-speed tapping with accurate depth, often including a tapping counter.
| Specification | |
|---|---|
| Tapping range | M3 to M16 |
| Voltage | 220 V – 600 W - 50 hz |
| The maximum radius | 1200 mm |
| Speed | 0 – 375 r/min |
| Heavy Volume | 30 KG |
| Type | Vertical / Horizontal / Universal |
| Tapping Chuck | GT 16, M3-M16 |
| Lubrication Time | 0.1-25 sec |
| Blowing time | Regular |
| Weight | 30 kg |
| Dimensions | 700mm * 610mm* 230 mm |
| Specification | |
|---|---|
| Tapping range | M6 to M36 |
| Voltage | 220 V – 2000 W - 50 hz |
| The maximum radius | 1200 mm |
| Speed | 0 – 200 r/min |
| Heavy Volume | 50 KG |
| Type | Vertical / Horizontal / Universal |
| Tapping Chuck | GT 24, M6-M36 |
| Lubrication Time | 0.1-25 sec |
| Blowing time | Regular |
| Weight | 50 kg |
| Dimensions | 840mm * 740mm* 250 mm |
